    Almost certainly, your bike is compatible with Mac Ride. But there are a few tricks to be aware of so you can order the right adapters if needed. And there are a few exceptions too. We also have a Mac Ride gallery so you can see just a few of the bikes from around the world in action with Mac Ride here! Any further questions, please reach out--- info@mac-ride.com.

    On this page:

    1. Will Mac Ride fit your bike?

    2. Choosing the right front mount spacer

    3. E-bike compatibility

    4. Mac Ride measurements and dimensions

    5. Bike makes and models- will they fit?

    6. Unique Situations: 1.5" steerer tubes (Cannondale Leftys), Scott Genius and Scott Spark Bikes, dropped bars, folding bikes, double crowns and more



    1. WILL MAC RIDE FIT YOUR BIKE?

    This guide explains how to check your steerer tube, your frame and your seat post for Mac Ride compatibility.

    CAN I USE MAC RIDE WITH A CARBON FRAME?

    Absolutely! Mac Ride mounts to the steerer tube and seat post and does not touch your frame:)

    CAN I USE MAC RIDE WITH A DROPPER POST?

    Absolutely! When mounting the rear clamp, be sure to go on to the base of the post, and not the part that drops.

    Mac Ride LOVES Dropper Posts! But check your dropper post carefully to make sure there is room for the Mac Ride rear clamp to fit around your seat post. This KS Lev dropper, for example, has a mechanism at the side. Unless you have more than the recommended 20mm of space for the Mac Ride rear clamp, the mechanism/cable will interfere with your Mac Ride set up.

    CAN I USE MAC RIDE WITH A "NORMAL" SEAT POST (NO DROPPER)?

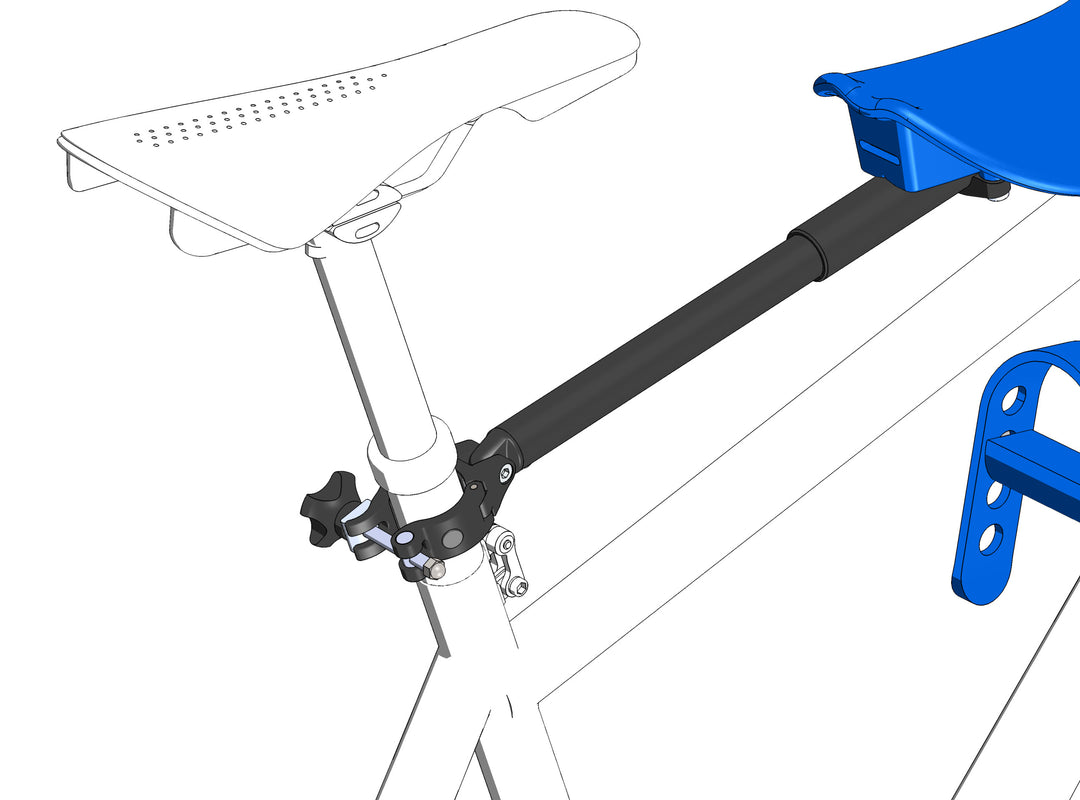

    YES! Mac Ride simply clamps to the seat post itself. You can choose where to place the rear clamp to establish the right level of slope for the Mac Ride saddle for your child.



    2. CHOOSING THE RIGHT FRONT MOUNT SPACER FOR YOUR BIKE

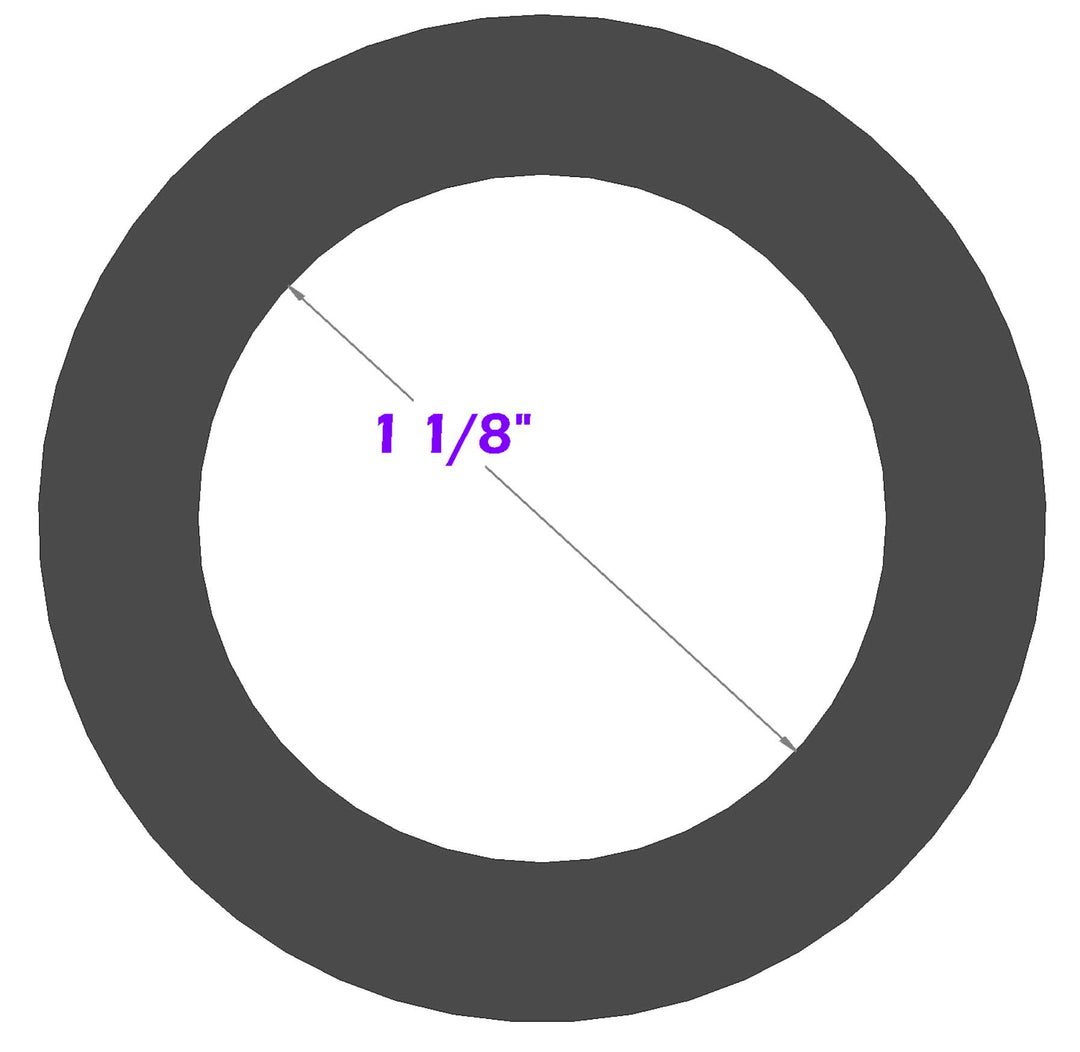

    The size and type of your steerer tube will determine whether you can use the standard Mac Ride mounts or whether you need an adapter. Mac Ride comes with two front mount standard spacers, size 1 1/8". If you do not have a common bike, you will need to purchase different mounting spacers on our shop:

    Standard Front Mounts | Giant Front Mounts | Quill Adapters | Knock Block Extra

    Check out the information below to help you determine what you need:

    (Looking for a TREK lockring spacer closer to home? The part number is: #545523)

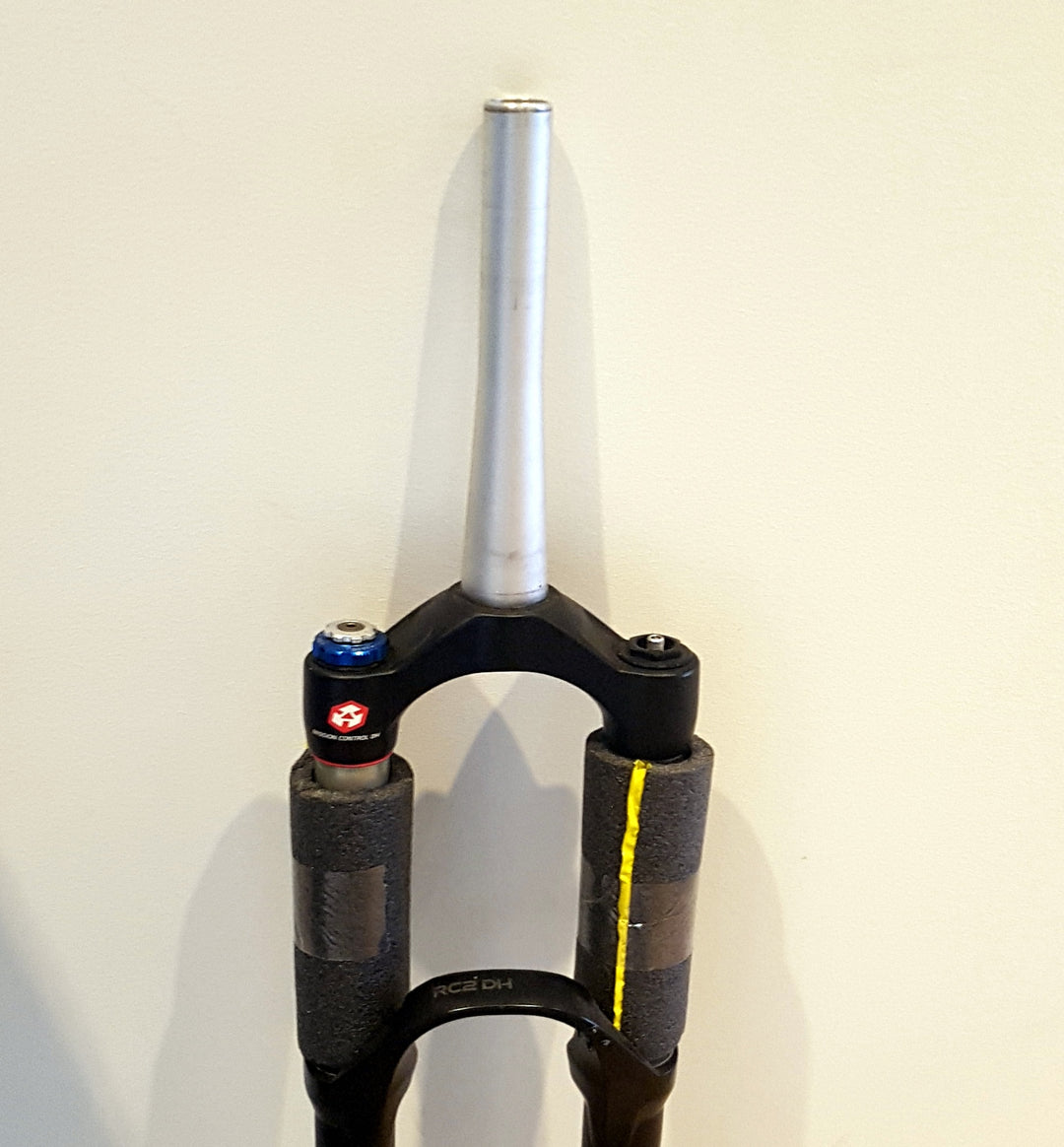

    WHAT IS A STEERER TUBE?

    Great question! It's the silver part of your bike, below, that goes down and connects to your forks.

    You are looking to measure the diameter of the steerer tube at the portion that sticks out from your frame (where it says 1 1/8", below). This is the part where the Mac Ride front mount fits, so it is the part that counts!

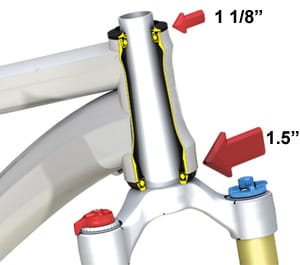

    WHAT IS A TAPERED STEERER TUBE?

    Sometimes the spec on your bike will say 1 1/8" with a "tapered" steerer tube, and then give additional dimensions, which can be confusing. As long as it's 1 1/8" at the part above your frame, the rest doesn't matter for fitting Mac Ride. So don't be worried about "tapered".

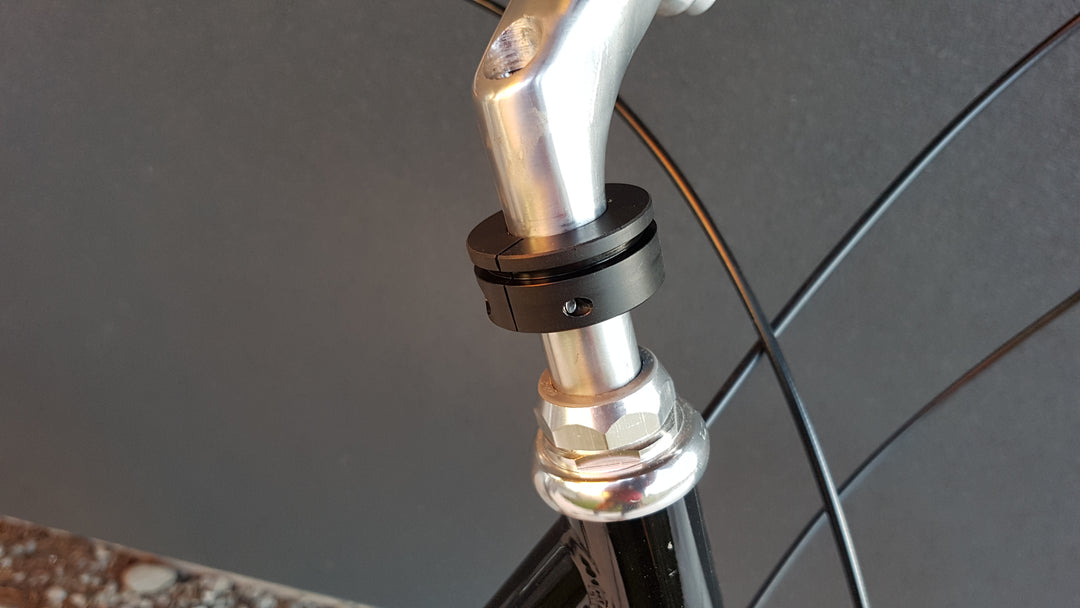

    WHAT IS A THREADED STEERER TUBE?

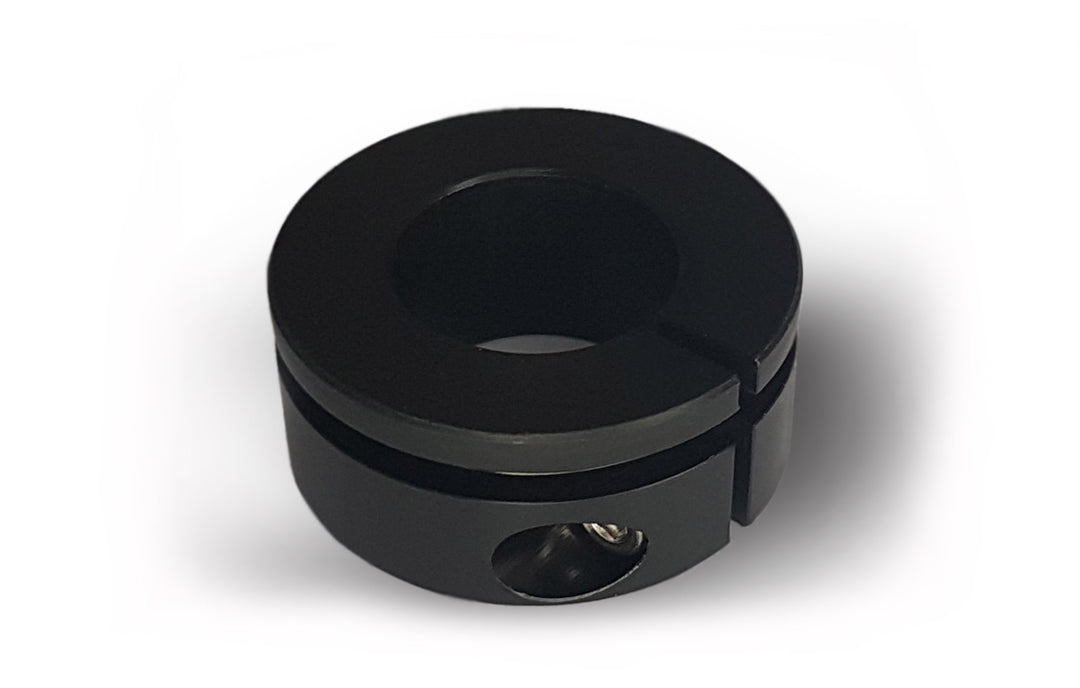

    For bikes with quill stems, they go inside a threaded steerer tube. These bikes, some commuters and older bikes - will need a quill stem adapter, either 7/8" or 1". For North America, there is a sneaky way to check what size you need, with either a Canadian or US quarter:

    ORDERING FRONT MOUNTS FROM MAC-RIDE.COM

    The below mounts and adapters are available on our shop. If you have a standard steerer tube, and two 1 1/8" spacers are not enough, you can always order more!

    Standard Front Mounts | Giant Front Mounts | Quill Adapters | Knock Block Extra

    THERE ARE SOME TUBES THAT ARE NOT COMPATIBLE WITH MAC RIDE

    See here for a guide to tubes that are not Mac Ride compatible

    3. E-BIKE COMPATIBILITY

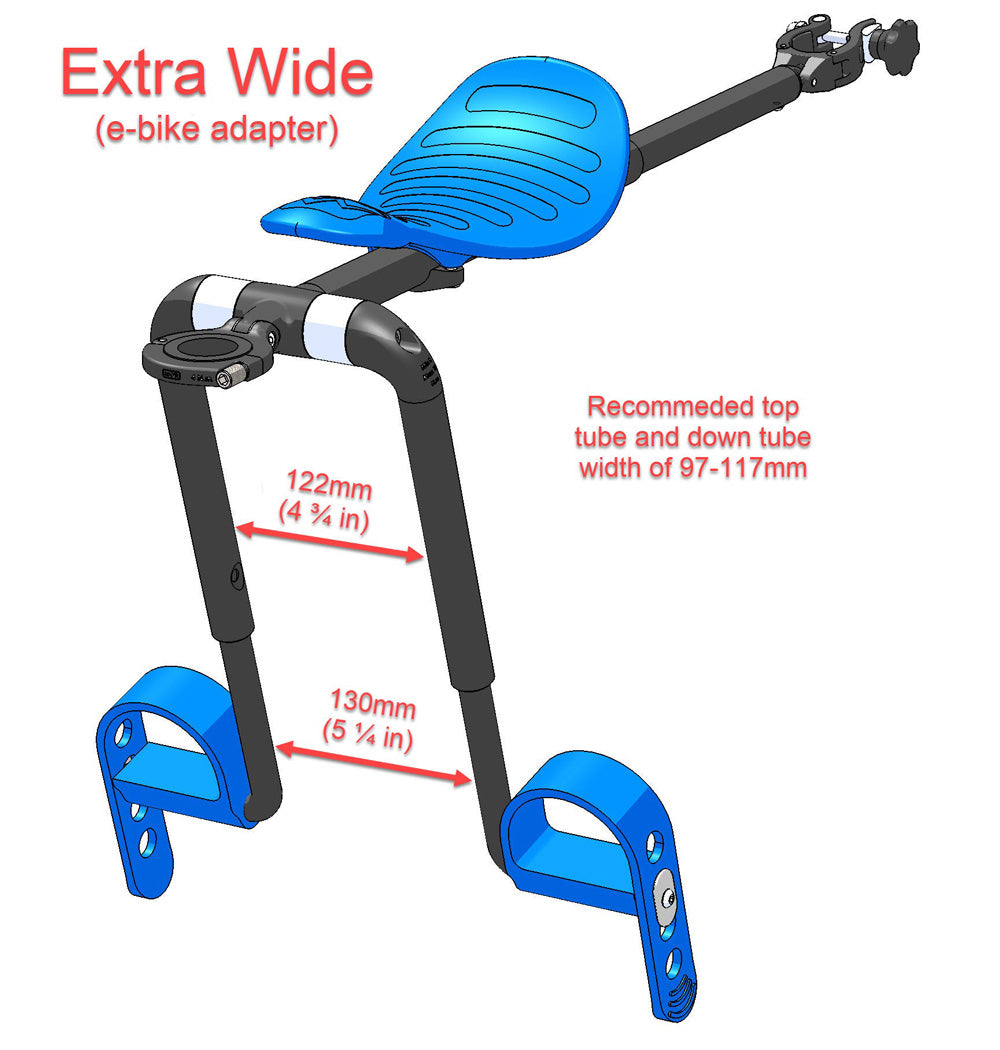

    Mac Ride is brilliant for e-bikes! Unless your e-bike frame is very narrow, or your battery pack is at the back, you will need our e-bike adapter to go with your Mac Ride.

    As e-bikes are so varied, check out this compatibility information before you make a purchase.

    Decided you need an e-bike adapter to go with your Mac Ride, maybe some grips too:

    E-Bike Adapter | Mini Grips

    4. MAC RIDE MEASUREMENTS AND DIMENSIONS

    Top Tube Length



    Minimum: 480 mm

    Maximum: 660 mm

    Down Tube Width





    Maximum: 60 mm (65mm at a push)

    (expandable to 90 mm with e-bike adapter,     95 mm at a push)

    Seat Post Diameter





    Minimum: 27.2 mm

    Maximum: 31.6 mm

    (see below if your bike is outside of this range)

    Rear Clamp



    Depth: 20 mm

    Thickness: 7.5 mm

    Stirrup Length



    Minimum: 230 mm

    Maximum: 320 mm

    Foot Strap Size

    XS, S, M, L

    SEAT POST DIAMETER FIXES

    For thinner seat posts - You can DIY a rubber patch to thicken the post and make Mac Ride compatible with your bike's seat post.

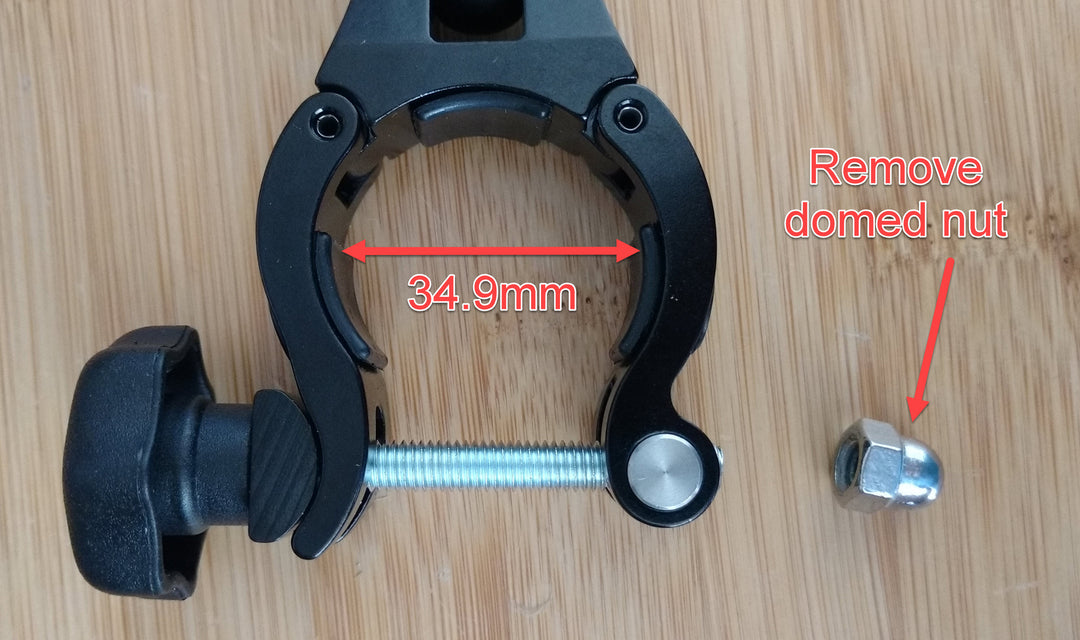

    For thicker seat posts (up to 34.9 mm) - Remove the domed nut from the end of the Mac Ride rear clamp hand screw. This will allow the clamp to open up to 34.9mm. The domed nut is only there to protect the rider's inner thigh from the potential sharp edge of the screw when clamped to very small diameter (27.2mm) seat posts. It serves no other purpose. As long as you don't need to go larger than 34.9mm, by removing the domed nut, there are no changes to the function of the clamp. A heads up-- the nut may be stiff to unscrew as there is a small amount of threadlock on the inside.


    This fix is not suitable for seat posts that are larger than 34.9mm (although we do not know of any... at this time!)

    5. BIKE MAKES AND MODELS - WILL THEY FIT?

    MAC RIDE COMPATIBLE:

    It is always a good idea to check your steerer tube, top tube, down tube and seat post but here are the bikes we have yet to see any compatibility issues with

    Brodie

    Canyon

    Chumba

    Commencal

    Cube

    Diamond Back

    Diviate

    Devinci

    Evil

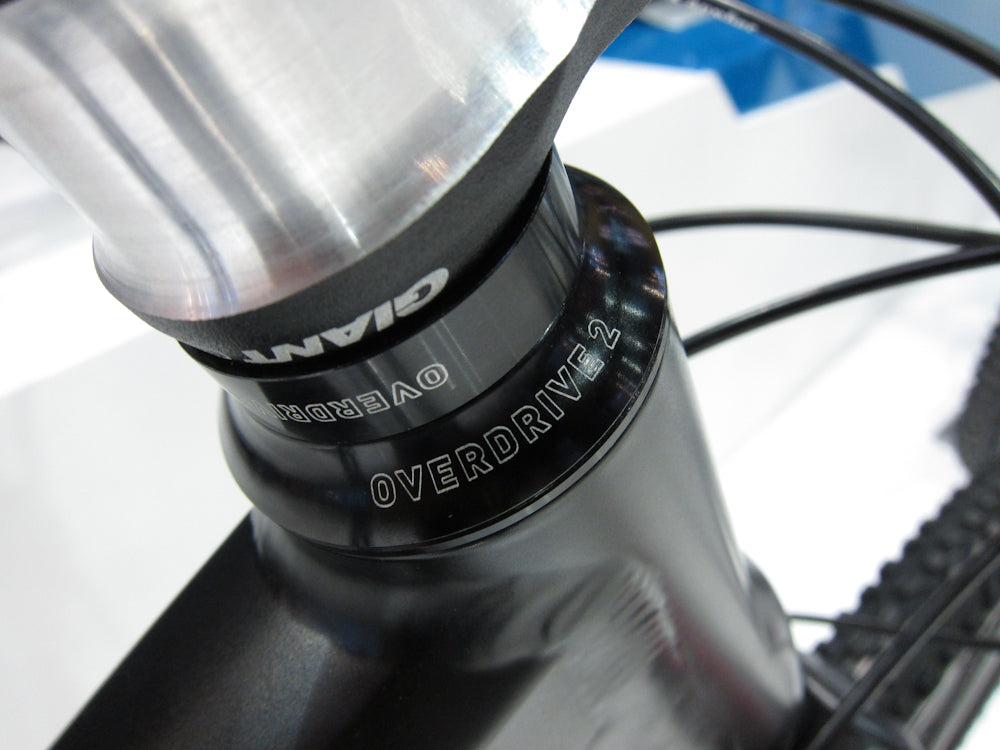

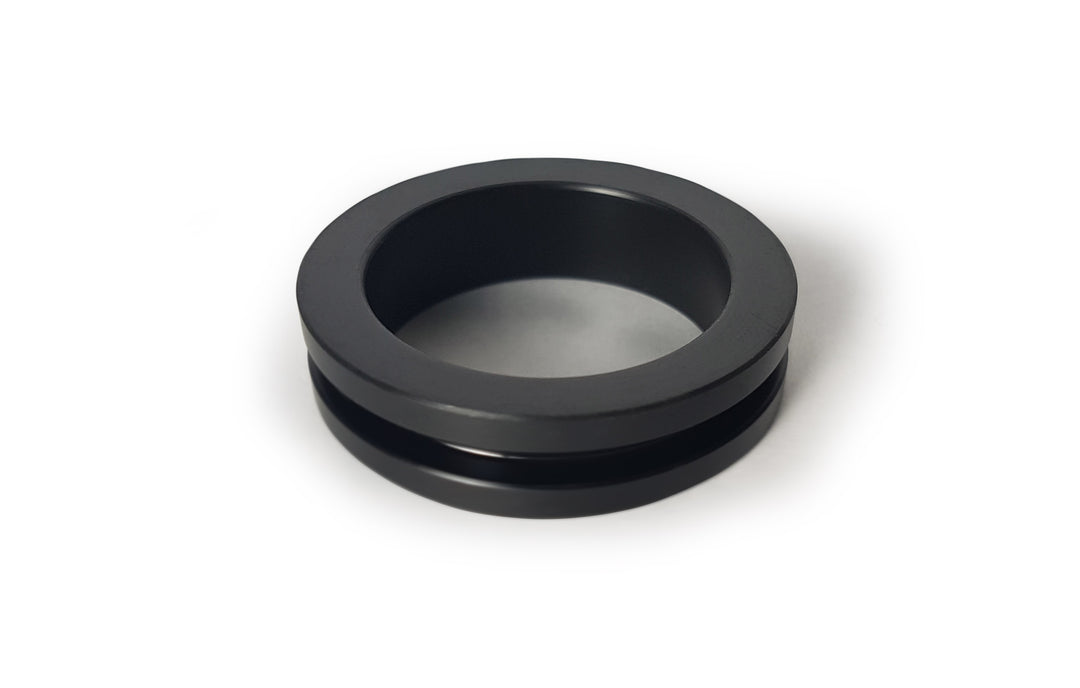

    Giant (special spacer available for bikes from 2011-2014)

    Giant E-bikes**

    Haibike

    Haibike E-bikes**

    Intense

    Kona

    Merida**

    Moustache

    Norco

    Opus

    Pivot



    Rocky Mountain

    Salsa

    Santa Cruz

    Specialized

    Specialized E-bikes (Levo)**

    Surly

    Transition

    Trek (lockring spacer available for bikes with Knock Block)

    Yeti

    YT Jeffsey

    **Most E-bikes require an e-bike adapter

    SPECIAL SITUATIONS:

    Cannondale

    • usually a great fit
    • but not for Lefty's, nor with 1.5" steerer tubes

     Rad Rover

    • can be Mac Ride compatible
    • but not if there is only one giant cone shaped spacer

    Scott

    • usually a great fit
    • but check for Scott Spark and Scott Genius spacers that are not round - these are not Mac Ride compatible

    6. UNIQUE SITUATIONS

    Here is a summary of some of the bikes where Mac Ride is not compatible:

    WHAT STEERER TUBES ARE NOT COMPATIBLE WITH MAC RIDE?

    • 1.5" - Threadless steerer tube - less common and being phased out - not compatible with Mac Ride (some Cannondale Leftys have this tube).

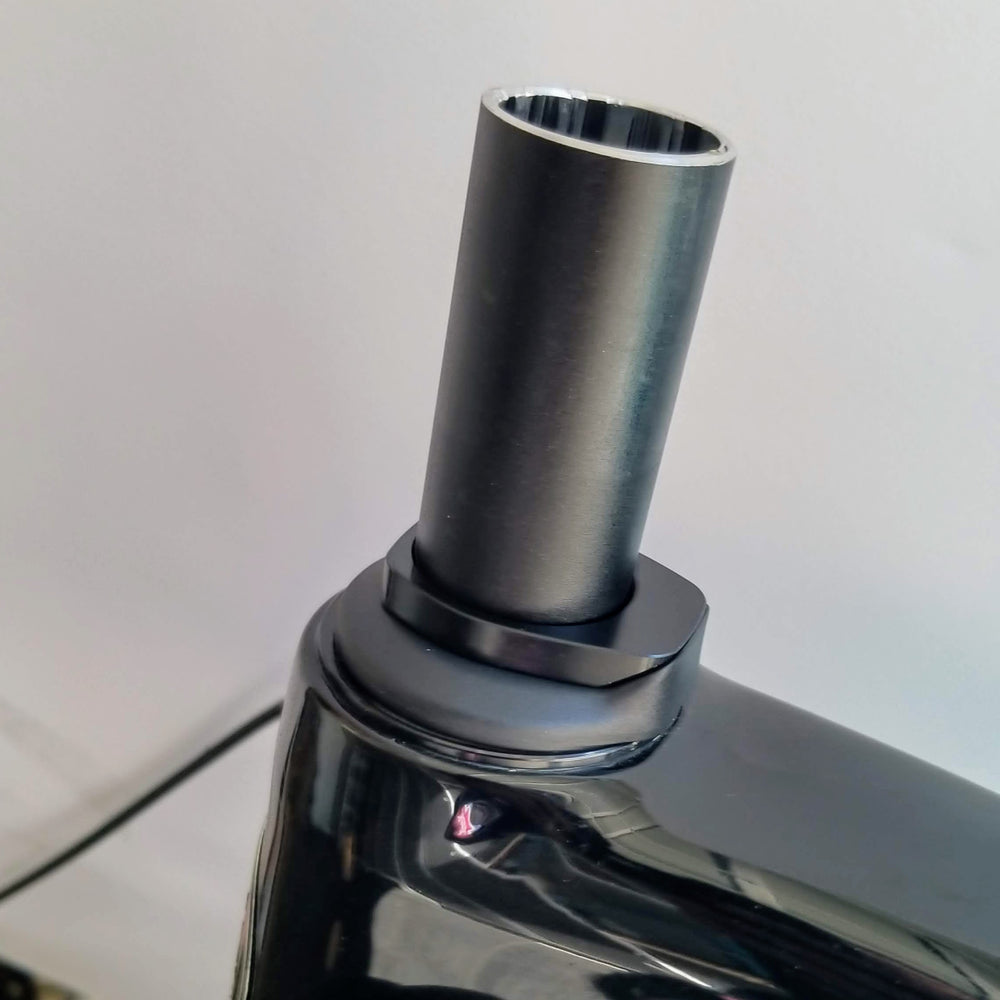

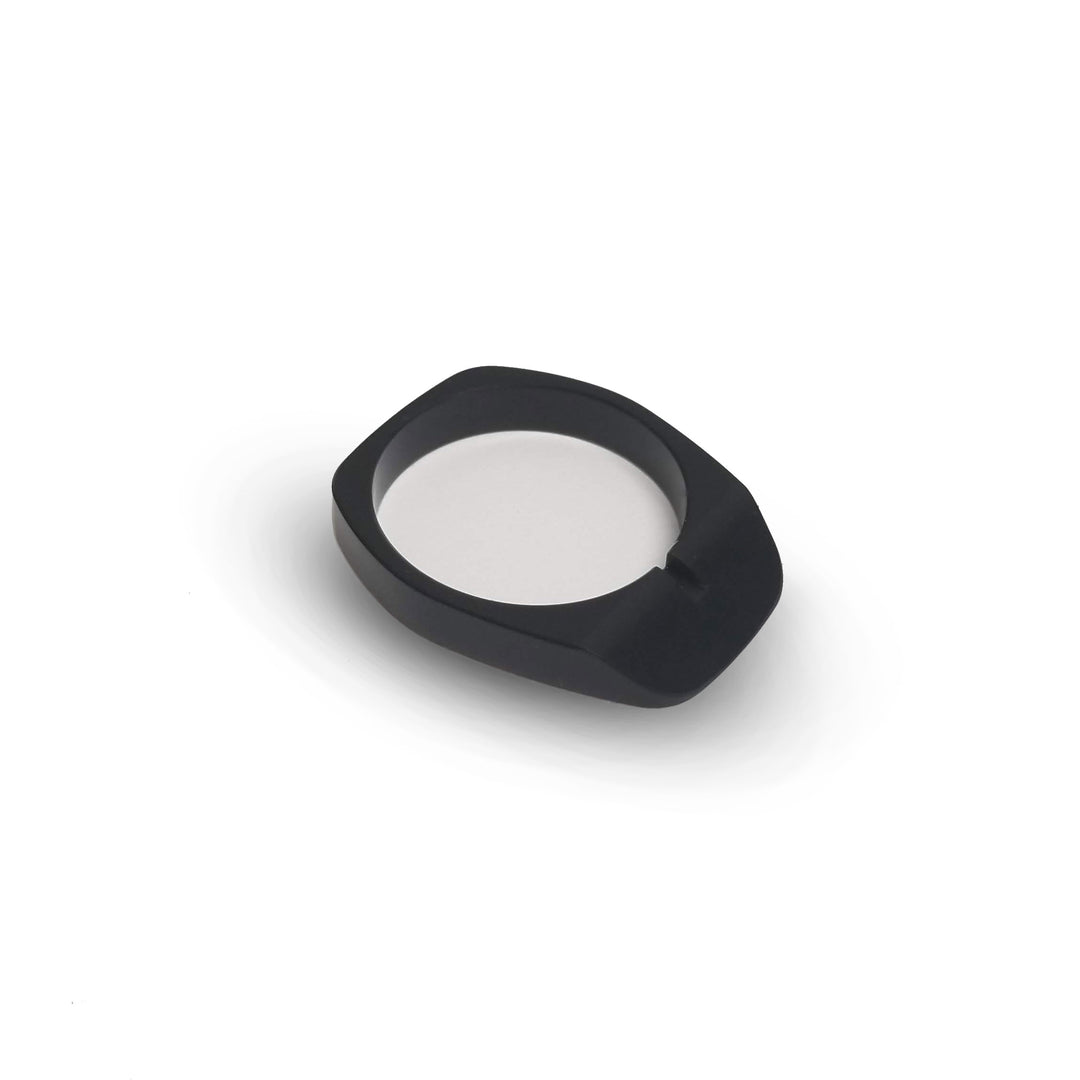

    • Spacers that are not round, as is the case for example, with some Scott Genius and Scott Spark spacers (note in the image below that there is a flat edge; this is not compatible with Mac Ride's front mount).

    CAN I USE MAC RIDE WITH A BIKE WITH DROPPED BARS?

    Mac Ride is not recommended for bikes with dropped bars.
    We love road bikers. But, alas, Mac Ride is not suitable for bikes with road bikes. The dropped bars reduce the space for your little one and make riding unsafe with the front wheel.

    CAN I USE MAC RIDE WITH A CANNONDALE LEFTY?

    Mac Ride can be made to be compatible with a Cannondale Lefty, however a part is needed - a special Lefty fork shaft, for example, here"Now you can install a standard 1 "1/8 stem on your Lefty® fork (OPI and 1"½). This new tube gives you access to shredding with Mac Ride, and to lighter stems, of the brand you like best and with any angle/length.Valid for any Lefty® fork, just check the size of your original tube.

    IS MAC RIDE COMPATIBLE WITH FOLDING BIKES?

    There are some rare exceptions, but generally, Mac Ride is not compatible with folding bikes.

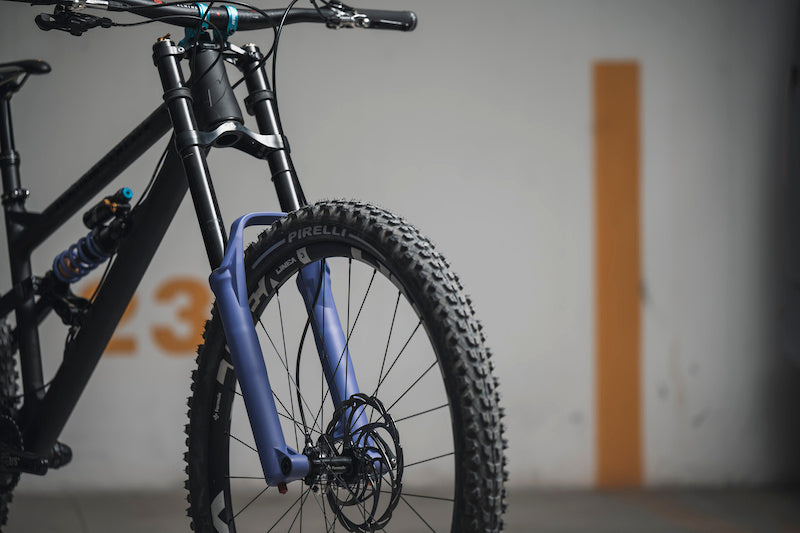

    CAN I USE MAC RIDE WITH A DOWNHILL BIKE THAT HAS A DOUBLE CROWN?

    Unfortunately not. The area becomes more crowded and you need space for your front clamp to close around the Mac Ride front mount spacer on the steerer tube. In any case, Mac Ride is better on a more low key bike for cruising child-friendly trails :)

    IS MAC RIDE COMPATIBLE WITH A MOPEDS?

    Mac Ride is not suitable for mopeds.

    IMPORTANT

    If you are unsure whether Mac Ride is compatible with your bike, using the online specification sheet for your bike, you can try measuring with a ruler, or talk to your bike dealer or local bike shop. Feel free to email us with questions as well - info@mac-ride.com.
